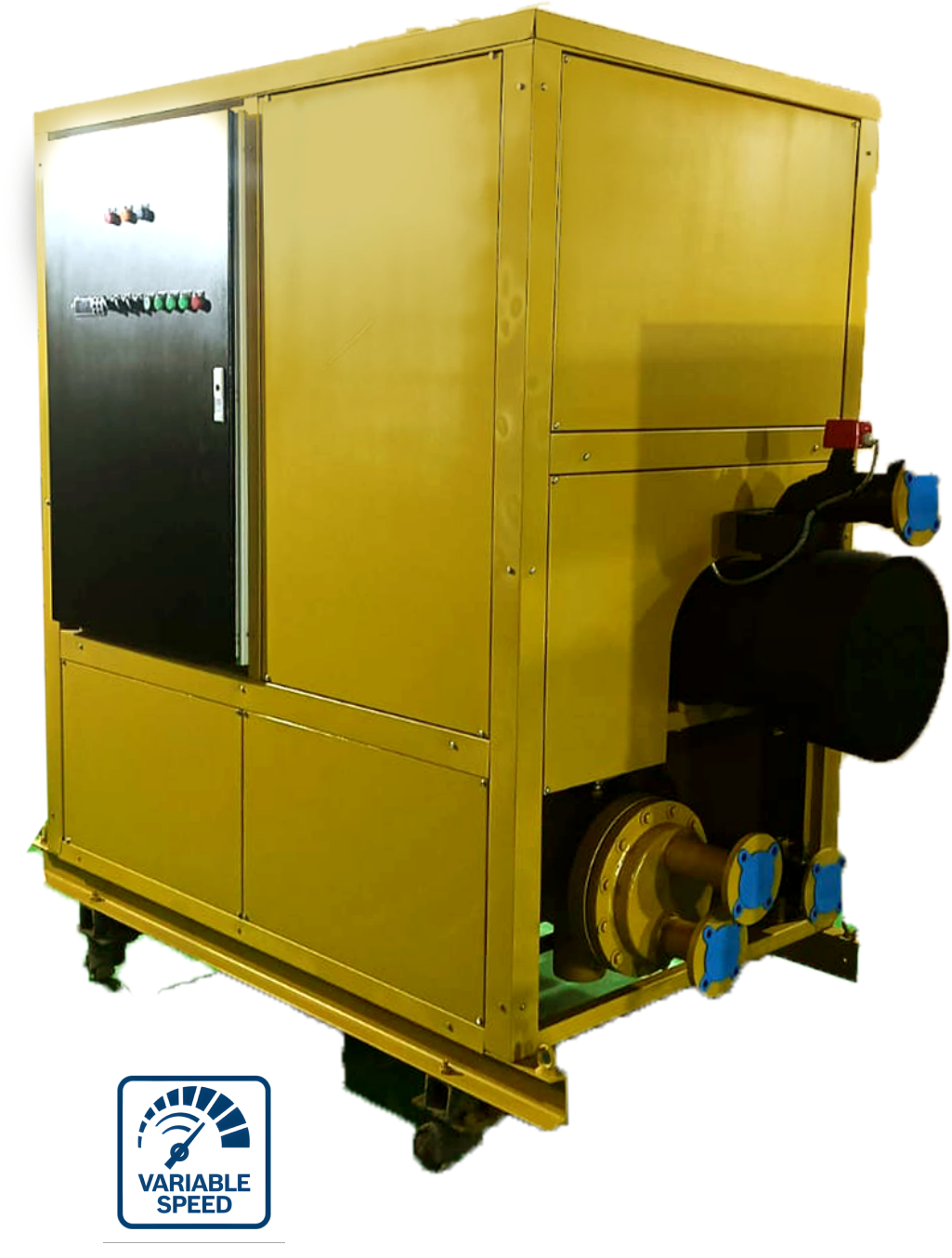

Water Cooled Inverter Scroll Chillers

Water Cooled Inverter Scroll Chillers are advanced cooling systems designed to provide precise, reliable, and energy-efficient temperature control for industrial and commercial applications. Unlike conventional chillers that operate at a fixed compressor speed, inverter technology allows the compressor capacity to vary according to the actual cooling requirement. This helps the chiller respond more effectively to changing loads while reducing unnecessary power consumption.

Reynold India offers Water Cooled Inverter Scroll Chillers in the 7 kW to 150 kW range, making them suitable for applications where compact equipment, accurate temperature control, and efficient part-load operation are important. The system combines inverter-driven scroll compressor technology with water-cooled heat rejection and intelligent microprocessor-based controls.

What Is a Water Cooled Inverter Scroll Chiller?

A Water Cooled Inverter Scroll Chiller is a refrigeration system in which chilled water is produced by removing heat from a circulating water loop. The extracted heat is transferred through the refrigeration circuit and rejected through the condenser water system, normally connected to a cooling tower or another suitable heat-rejection arrangement.

The key difference is the inverter-driven scroll compressor. Instead of simply switching the compressor on and off to meet the cooling demand, the inverter adjusts compressor speed. When the cooling requirement is low, the compressor can operate at a lower speed. When the load increases, the compressor speed increases accordingly.

This variable-speed operation can improve temperature stability and help reduce energy consumption, particularly in applications where the cooling load changes throughout the day or production cycle.

How Does a Water Cooled Inverter Scroll Chiller Work?

The working principle is based on the standard vapour-compression refrigeration cycle.

First, warm process water or chilled-water return enters the evaporator. Refrigerant circulating inside the chiller absorbs heat from the water, reducing its temperature. The cooled water is then circulated back to the process or cooling application.

The refrigerant, after absorbing heat, enters the scroll compressor. The inverter controls the compressor speed according to the cooling requirement. The compressed refrigerant then travels to the water-cooled condenser, where heat is transferred to condenser water.

The condenser water carries this heat away, generally through a cooling tower or suitable heat-rejection system. The refrigerant then passes through the expansion device, where its pressure and temperature are reduced before returning to the evaporator to continue the cycle.

This continuous process provides controlled and dependable cooling for connected equipment and processes.

Why Choose Inverter Technology?

Industrial and commercial cooling loads are rarely constant. A machine may require full cooling capacity during production and substantially less cooling during standby, changeover, or partial-load operation.

A conventional fixed-speed compressor may continue operating at its available capacity and use more power than necessary during these periods. An inverter-driven compressor can adjust its speed to better match the actual requirement.

The major advantages include:

• Improved part-load efficiency
• Better temperature stability
• Variable-speed capacity control
• Reduced compressor cycling
• Lower unnecessary energy consumption
• Smooth response to changing cooling loads
• Reliable operation under varying process conditions

The actual energy savings depend on factors such as entering and leaving water temperatures, condenser-water conditions, load profile, ambient conditions, system design, and operating hours. Therefore, the chiller should always be selected based on the complete application rather than capacity alone.

Key Features of Reynold India Water Cooled Inverter Scroll Chillers

Reynold India's Water Cooled Inverter Scroll Chillers are designed with features intended to simplify operation while providing accurate cooling control.

1. Inverter-Driven Compressor: The inverter-driven compressor adjusts its operating speed according to cooling demand. This makes the system particularly useful for applications with varying thermal loads.
2. Variable Speed Capacity Control: Variable-speed capacity control allows the chiller to respond to changes in process requirements rather than relying only on conventional on/off operation.
3. Compact Construction: The compact configuration makes these chillers suitable for installations where equipment space is limited. Proper clearance for servicing, piping, ventilation of associated equipment, and maintenance should still be provided during installation.
4. Microprocessor-Based Control: The chiller is fully microprocessor controlled and supports MODBUS communication, allowing operating parameters and system information to be integrated with suitable monitoring or building/process management systems.
5. Primary and Secondary Pump Options: Depending on the project requirement, inbuilt primary and secondary pump options can be considered. This can simplify system integration and help create a more complete chilled-water package.
6. Pressure and Temperature Monitoring: Pressure and temperature transmitters provide important operating information to the control system. Monitoring these parameters helps operators understand system performance and supports protective control functions.

Benefits of Water Cooled Inverter Scroll Chillers

The combination of water cooling, scroll compressor technology, and variable-speed operation makes these chillers suitable for applications where efficiency and precise cooling are important.

• Energy-Efficient Operation: Inverter technology allows compressor output to follow the cooling load more closely, which can improve efficiency during part-load operation.
• Precise Temperature Control: Variable capacity operation allows the system to respond to changes in process temperature and cooling demand.
• Compact Design: Water-cooled configurations can be advantageous where available installation space is limited.
• Reliable Cooling: Scroll compressors have a relatively simple mechanical design and are widely used in refrigeration and air-conditioning applications.
• Reduced Cycling: Variable-speed operation can reduce frequent compressor starts and stops when compared with conventional fixed-capacity operation.
• Easy Monitoring: Microprocessor controls and MODBUS communication can make system monitoring and integration easier where required.

Applications of Water Cooled Inverter Scroll Chillers

Water Cooled Inverter Scroll Chillers can be used across a wide range of industries where controlled chilled water is required.

• Plastic Processing: Plastic injection moulding, extrusion, blow moulding, and other plastic-processing operations often require controlled cooling for moulds, hydraulic systems, oil circuits, or process equipment. Stable cooling-water temperature can contribute to consistent production conditions.
• Pharmaceutical Industry: Pharmaceutical manufacturing requires controlled environmental and process conditions. Water-cooled inverter scroll chillers can be used for process cooling and selected HVAC applications where the required temperature and water quality conditions are properly defined.
• Food and Beverage: Cooling is an important part of many food and beverage processes. Chillers can support process-water cooling, equipment cooling, and temperature control applications.
• Medical Equipment: Certain medical and diagnostic equipment requires dependable cooling to maintain operating conditions. Chiller selection for such applications should be based on the equipment manufacturer's cooling requirements.
• Commercial Buildings: Water-cooled chillers can also be used for comfort cooling in offices, commercial facilities, hotels, and other buildings where a central chilled-water system is appropriate.
• Manufacturing and Process Industries: Industrial machinery, production lines, testing systems, and other processes may require continuous or intermittent chilled-water cooling. The variable-speed capability makes the system useful where the load changes during operation.

Water Cooled vs Air Cooled Inverter Chillers

The choice between air-cooled and water-cooled technology depends on the site and application.

A water-cooled chiller normally uses condenser water and therefore requires appropriate heat-rejection equipment such as a cooling tower. This arrangement can provide efficient heat rejection under suitable operating conditions and can be attractive for installations where a central water system is already available.

An air-cooled chiller rejects heat directly to the surrounding air and generally does not require a cooling tower or condenser-water circuit.

For the final selection, factors such as cooling capacity, operating hours, climate, available water, installation space, maintenance capability, electricity cost, and total lifecycle cost should be evaluated.

How to Select the Right Water Cooled Inverter Scroll Chiller?

Selecting the correct chiller is more than simply matching the required tonnage. The following parameters should be considered:

• Required cooling capacity
• Chilled-water inlet and outlet temperatures
• Required flow rate
• Condenser-water inlet and outlet conditions
• Ambient conditions
• Operating hours and load profile
• Required temperature stability
• Available electrical supply
• Water quality
• Installation space
• Pumping requirements
• Control and communication requirements
• Future expansion requirements

A proper heat-load calculation and review of actual process conditions should be completed before finalizing the chiller capacity.

Why Choose Reynold India?

Reynold India is an Indian manufacturer of industrial water chillers and cooling solutions, with products serving sectors including pharmaceuticals, plastics, food processing, power generation, and other industrial applications. The company states that it designs and manufactures air-cooled and water-cooled chillers as well as customized cooling solutions.

For customers requiring a Water Cooled Inverter Scroll Chiller Manufacturer in India, Reynold India can provide application-oriented cooling solutions based on the required capacity, process conditions, temperature range, and installation requirements.

The company's chiller range includes water-cooled chillers, water-cooled screw chillers, water-cooled scroll chillers, and other customized industrial cooling systems.

Conclusion

Water Cooled Inverter Scroll Chillers provide a practical solution for applications that require efficient, precise, and reliable chilled-water cooling. Their inverter-driven scroll compressors can adjust capacity according to changing cooling demand, while water-cooled heat rejection can provide an effective solution for suitable industrial and commercial installations.

With a 7 kW to 150 kW range, variable-speed capacity control, microprocessor-based operation, MODBUS communication, and optional primary and secondary pumps, Reynold India's Water Cooled Inverter Scroll Chillers are designed for a variety of process and comfort-cooling applications.

If you are planning to install or replace a chiller, the best approach is to evaluate the complete operating conditions rather than selecting a machine based only on nominal capacity. Contact Reynold India to discuss your cooling requirement and identify a suitable water-cooled inverter scroll chiller for your application.
