Our Dry Cooler with Hydraulic Package is a complete, energy-efficient cooling solution designed for industrial applications requiring closed-loop heat rejection. The system integrates an air-cooled dry cooler with a fully engineered hydraulic module, ensuring reliable circulation of coolant (water / water-glycol) across process equipment.

This packaged solution eliminates the need for cooling towers, reduces water consumption, and provides consistent performance even in demanding environments.

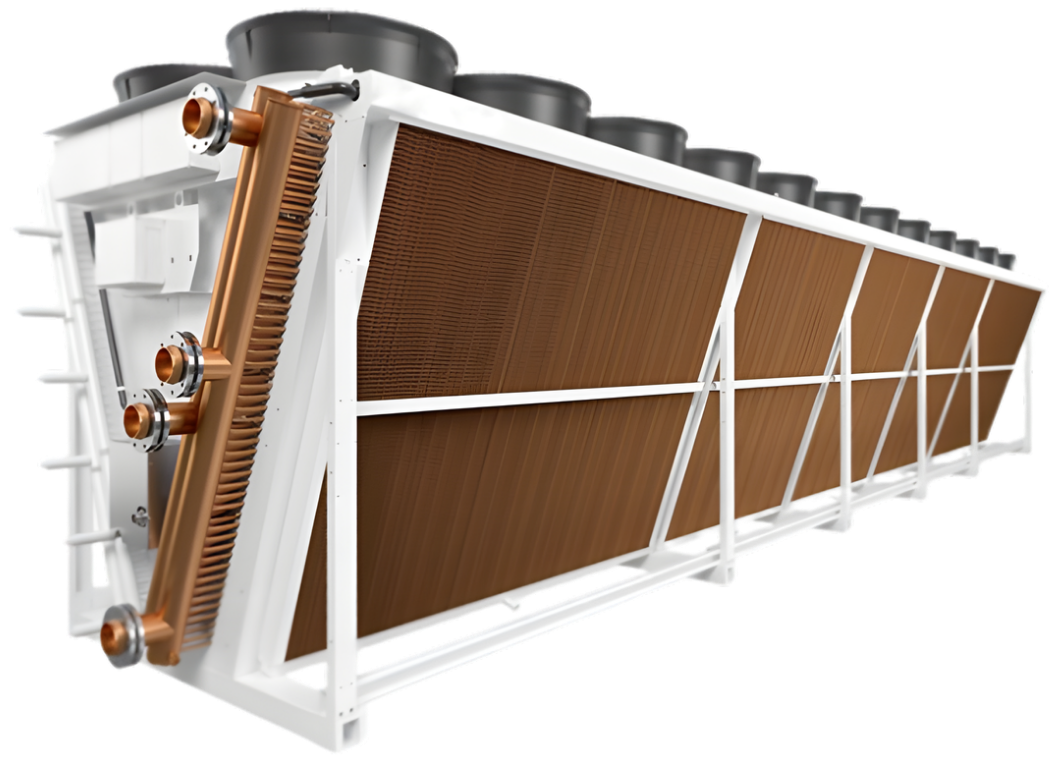

Dry Cooler with Hydraulic Package

A Dry Cooler with Hydraulic Package is a complete industrial cooling solution designed for applications where heat needs to be rejected from a closed-loop process without relying on a conventional cooling tower. The system combines an air-cooled dry cooler with an engineered hydraulic package to circulate cooling fluid such as water or water-glycol through process equipment.

Reynold India offers Dry Cooler with Hydraulic Package solutions through its Project Division for industrial applications requiring reliable and continuous closed-loop heat rejection. The packaged arrangement integrates the dry cooler and hydraulic circulation system into one coordinated solution, helping simplify installation, improve system management and reduce dependence on water-intensive cooling methods.

What Is a Dry Cooler with Hydraulic Package?

A dry cooler is a heat-rejection unit that uses ambient air to remove heat from a circulating fluid. Unlike a cooling tower, a dry cooler does not require the process fluid to come into direct contact with atmospheric air for evaporative cooling.

When a hydraulic package is integrated with the dry cooler, the complete system can include the equipment required to circulate the cooling fluid between the dry cooler and the connected process. Depending on the project design, the hydraulic arrangement may include pumps, piping, valves, expansion arrangements, instrumentation and other necessary components.

Reynold India's system is specifically described as a solution for closed-loop heat rejection, using water or water-glycol as the circulating coolant.

This makes the system particularly useful for industrial facilities where water conservation, process reliability and simplified cooling infrastructure are important considerations.

How Does a Dry Cooler Work?

The working principle of a dry cooler is relatively straightforward.

First, the warm water or water-glycol returning from the industrial process enters the dry cooler. Fans move ambient air across the heat-transfer surfaces of the cooler. Heat from the circulating fluid is transferred through the heat exchanger surface to the surrounding air.

As the fluid releases heat, its temperature decreases. The cooled fluid is then circulated back to the process through the hydraulic system.

The process continues continuously as long as the cooling demand and ambient conditions remain within the design limits of the system.

Because the process fluid remains within a closed circuit, there is no requirement for continuous evaporative contact between the process fluid and air.

What Is the Hydraulic Package?

The hydraulic package is the part of the system responsible for managing and circulating the cooling fluid.

Its configuration depends on the application, flow requirement and process design. A project-specific hydraulic package may include:

• Circulation pumps
• Expansion vessel or expansion arrangement
• Valves
• Strainers and filters
• Flow measurement devices
• Pressure gauges and sensors
• Temperature sensors
• Piping and headers
• Control panel and instrumentation
• Drain and filling arrangements
• Safety and protection devices

The exact components should be selected according to the required flow rate, pressure, fluid type, temperature range and installation conditions.

By combining the dry cooler and hydraulic equipment into a packaged system, the overall cooling solution can be easier to integrate with the customer's process.

Why Choose a Dry Cooler Instead of a Cooling Tower?

Cooling towers are widely used for industrial heat rejection, but they depend on water and evaporative cooling. For facilities where water availability, water treatment or maintenance is a concern, a dry cooler can provide an alternative approach.

Reynold India's Dry Cooler with Hydraulic Package is designed to eliminate the need for cooling towers and reduce water consumption.

Some important advantages include:

• Reduced Water Consumption: Since heat is rejected directly to ambient air, the system can significantly reduce the water requirement associated with evaporative cooling.
• Closed-Loop Operation: The cooling fluid circulates in a closed loop. This helps maintain controlled process conditions and reduces exposure of the circulating fluid to the surrounding environment.
• Lower Water Treatment Requirement: A dry cooler does not operate on the same evaporative principle as a conventional cooling tower. This can reduce the need for routine cooling-tower water treatment activities, depending on the complete system design.
• Cleaner Cooling Operation: Because there is no cooling-tower evaporation process, issues associated with cooling-tower drift and evaporative water loss can be reduced.
• Simplified Industrial Cooling System: A packaged dry cooler and hydraulic module can provide a coordinated cooling arrangement rather than requiring the customer to independently design multiple components.

Water and Water-Glycol Cooling

The Reynold India page identifies water and water-glycol as suitable coolant options for its Dry Cooler with Hydraulic Package.

Water is commonly used where the required operating temperature and environmental conditions make it suitable.

Water-glycol mixtures may be considered when additional freeze protection or lower-temperature operation is required. The appropriate glycol concentration should be determined based on the required operating temperature, heat-transfer performance, pump requirements and system materials.

The choice of circulating fluid should always be made according to the actual process conditions and equipment manufacturer's recommendations.

Applications of Dry Cooler with Hydraulic Package

Dry coolers can be used across a variety of industrial applications where heat must be rejected from a closed-loop cooling circuit.

Typical applications may include:

• Industrial process cooling
• Manufacturing plants
• Data centre cooling support systems
• Power and electrical equipment cooling
• Compressor cooling
• Hydraulic equipment cooling
• Transformer and electrical system cooling
• Machine cooling
• Process heat rejection
• Oil and gas applications
• Chemical process industries
• Food and beverage process equipment
• Plastic processing machinery
• Industrial refrigeration systems

The actual suitability of a dry cooler depends on the required fluid temperature, ambient conditions, heat load and flow requirements.

Advantages of a Dry Cooler with Hydraulic Package

A properly designed dry cooler and hydraulic package can offer several operational benefits:

• Energy-efficient heat rejection: Fans and pumps can be selected according to the required operating conditions, helping optimize system operation.
• Reduced water dependency: The system can reduce dependence on evaporative cooling and associated water consumption.
• Closed-loop cooling: The same cooling fluid can circulate continuously between the process and dry cooler.
• Flexible coolant selection: Water or water-glycol can be selected according to the application.
• Easy integration: A packaged hydraulic system can simplify connection with industrial process equipment.
• Reduced maintenance associated with cooling towers: The system avoids many components associated specifically with evaporative cooling towers.

Factors to Consider When Selecting a Dry Cooler

Selecting a dry cooler should be based on the actual process conditions rather than only the nominal heat load.

Important parameters include:

• Required heat rejection capacity
• Fluid inlet temperature
• Required fluid outlet temperature
• Ambient design temperature
• Water or water-glycol concentration
• Required flow rate
• Pump head
• Pressure drop
• Installation altitude
• Available space
• Fan and electrical requirements
• Process operating schedule
• Required control philosophy

Ambient temperature is particularly important because a dry cooler uses outdoor air as the heat-rejection medium. As ambient temperature increases, the achievable cooling-fluid temperature also changes. Therefore, the design should be based on the actual site conditions.

Customized Dry Cooler Solutions

Industrial cooling requirements vary significantly between applications. A dry cooler for a manufacturing process may have completely different requirements from one used for compressor cooling or electrical equipment.

For this reason, the hydraulic package should be designed along with the dry cooler rather than treated as a separate standard component.

Reynold India's Project Division offers the Dry Cooler with Hydraulic Package as a complete packaged solution. The system can be considered around the customer's process requirements, coolant, circulation requirements and installation conditions.

Why Choose Reynold India?

Reynold India has the Dry Cooler with Hydraulic Package within its Project Division, alongside specialized solutions including API Refrigeration Packages, Ammonia Purification Package Systems, Hazardous Area Chillers for Oil & Gas and Hydrogen Chiller Packages.

For industrial projects, the benefit of a project-oriented approach is that the cooling system can be evaluated according to the complete application instead of selecting equipment only from a standard catalogue.

The dry cooler, hydraulic circulation system, controls and process connections should work together to provide stable and dependable cooling performance.

Frequently Asked Questions

• What is a Dry Cooler with Hydraulic Package? It is a packaged industrial cooling solution combining an air-cooled dry cooler with a hydraulic circulation system for closed-loop heat rejection.
• Does a dry cooler require a cooling tower? No. A dry cooler uses ambient air to reject heat and therefore does not require the evaporative cooling principle used by conventional cooling towers.
• What fluid can be used in a dry cooler? Reynold India's system is designed for coolant circulation using water or water-glycol, depending on the application.
• Does a dry cooler save water? Yes. Because it uses air for heat rejection instead of evaporating water, a dry cooler can substantially reduce water consumption compared with water-intensive evaporative cooling systems.
• Where are dry coolers used? Dry coolers can be used in industrial process cooling, machinery cooling, compressor cooling, electrical equipment cooling, oil and gas applications and other closed-loop heat-rejection systems.
• Can the hydraulic package be customized? Yes. The hydraulic configuration should be selected according to the required flow, pump head, coolant, operating temperature, pressure and process connection requirements.

Get a Dry Cooler with Hydraulic Package from Reynold India

A Dry Cooler with Hydraulic Package can be an effective solution for industries looking for closed-loop heat rejection with reduced dependence on cooling towers and water consumption.

Reynold India's packaged system combines an air-cooled dry cooler with a hydraulic module for circulating water or water-glycol across connected process equipment. The solution is designed for reliable industrial operation and can be considered for applications where water conservation, controlled cooling and simplified system integration are important.

If you are planning a new industrial cooling system, replacing a cooling tower, or looking for a closed-loop heat-rejection solution, Reynold India can evaluate the application requirements and develop a suitable Dry Cooler with Hydraulic Package configuration.
